elumo Hub Installation (surface wiring)

The elumo Hub should be installed as close to the elumo Reader as possible on the secure side of the door. Choose the installation method that is most suitable for your environment:

• Placed above a false ceiling

• Surface-mounted on the wall (cables enter via side entry)

For in-wall wiring (where cables enter via rear entry) please got to elumo Hub Installation (in-wall wiring).

Placed above a false ceiling

1. Place the hub securely in a suitable location above the ceiling

2. Remove the side cable knock-out

3. Route the cables into the elumo Hub

4. Connect the elumo reader and ethernet cables

5. Connect the wired electric lock to the relay

6. Hook the case lid on the top of the hub and secure underneath using the supplied security screws

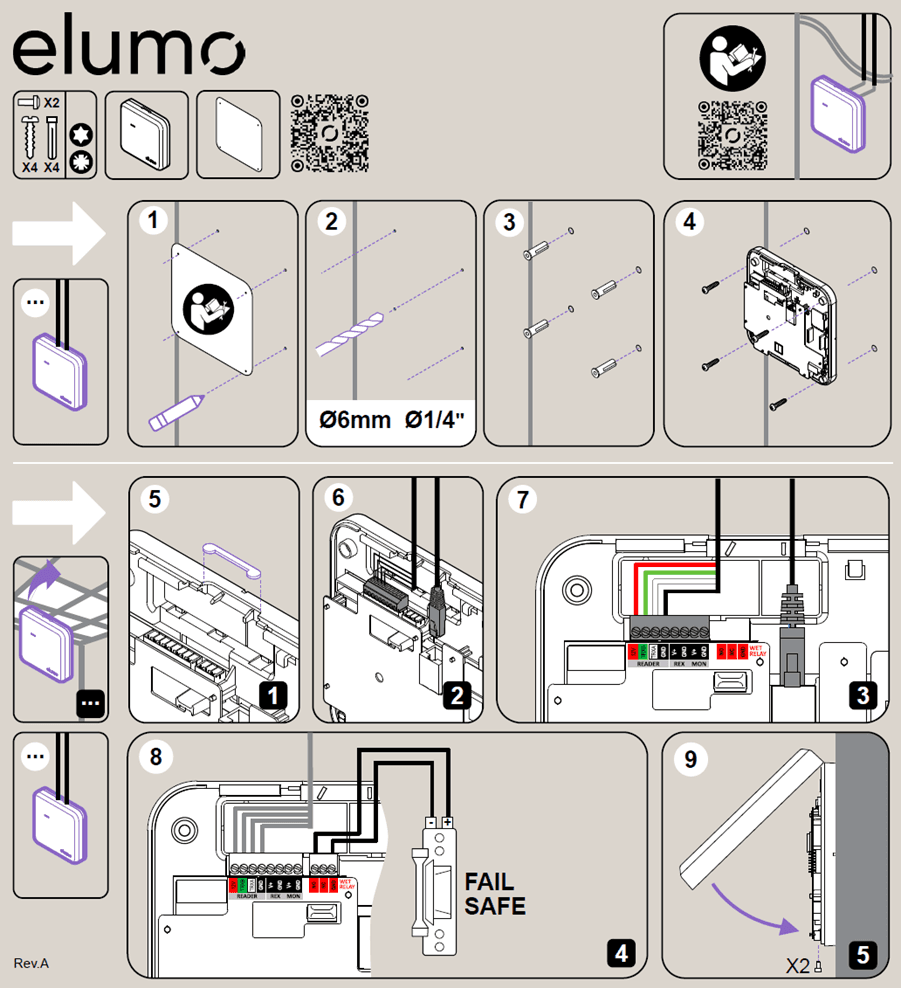

Surface-mounted on the wall (cables via side entry)

1. Use the mounting template provided to identify a suitable place on the wall to mount the hub, ensuring that the template is upright & level, and mark the mounting locations using the holes provided

2. Drill the mounting holes using a 6mm or 1/4" diameter drill bit

3. Place the supplied fixings in the mounting holes

4. Mount the hub to the wall using the supplied screws

5. Remove the side cable knock-out

6. Route the cables into the elumo Hub

7. Connect the elumo reader and ethernet cables

8. Connect the wired electric lock to the relay

9. Hook the case lid on top of the hub and secure underneath using the supplied security screws
