elumo Reader - Technical Specifications

The elumo Reader provides certified credential reading for Apple Wallet and Google Wallet passes as well as MIFARE DESFire physical cards.

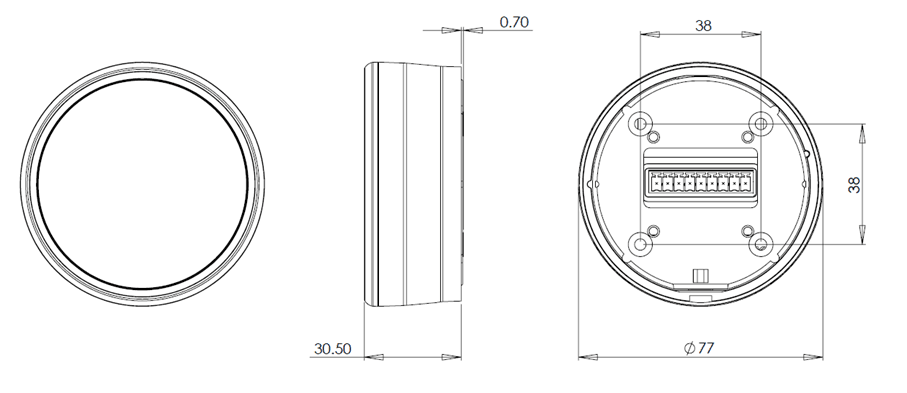

Connectivity

• Hub (9-way screwed Phoenix connector, supplied – see cable below)

  1. 12VDC+ (future use)

  2. Ground (future use)

  3. N/C

  4. N/C

  5. N/C

  6. Hub: TRXB

  7. Hub: TRXA

  8. Hub: Ground

  9. Hub: 12VDC+
     ​

• Supplied Reader cable (RS485 22AWG 3m)

  • All conductors pre-crimped with ferrules

  • Terminated at one end with 9-way screwed Phoenix connector

    Note: 8-way screwed Phoenix connector for Hub supplied with Hub

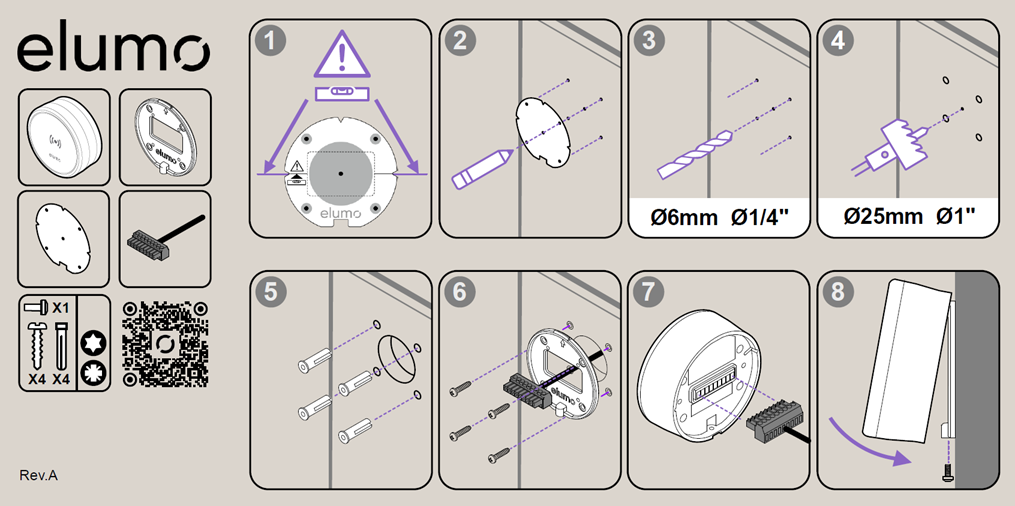

Quick Start Guide
