Testing your elumo Hub & Reader Installation

Follow these simple steps to test your elumo Hub & Reader installation before proceeding to configuration in the elumo platform.

1. Confirm that once powered on your elumo Hub shows the following three illuminated LEDs:

   • Red: power (solid)

   • Green: network (blinks with activity)

   • Blue: platform (blinks with activity)
     ​

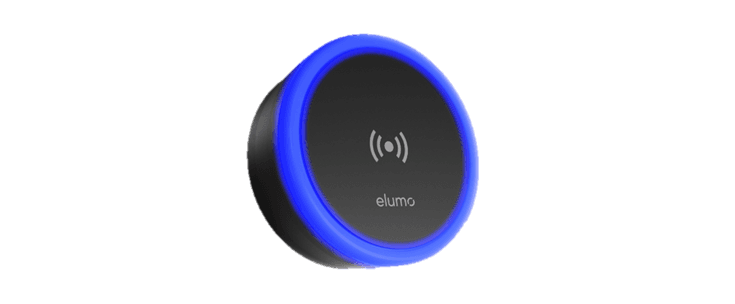

2. Confirm that once powered on your elumo Reader displays a blue LED ring. This indicates that the elumo Reader is in installation mode.
   ​

3. Use the provided Installation Test Card to test your installation:

   • Present the test card to the elumo Reader

   • You should hear a beep when reading the card and then receive confirmation of access allowed with a green LED ring

   • Your connected wired lock should release the door

Having successfully tested your installation you may now proceed to configuring your door in the elumo platform.

Once configured in the elumo platform, the elumo Reader will no longer display a blue LED ring and instead display one of the following full or partial LED rings:

• Red: access groups only allowed

• White: tap-to-book (and access groups) allowed

• Orange: upcoming or booking in progress (booking attendees or access groups allowed)

You may return the elumo Hub & Reader to installation mode by removing its configuration in the elumo platform.
