elumo Hub - Technical Specifications

The elumo Hub provides power and connectivity to the elumo Reader and electric lock as well as acting as the real-time gateway to the elumo platform.

Connectivity

• Ethernet (RJ45, not supplied)

  • PoE+ 802.3at

  • CAT5 or higher cable (<100m)
    ​

• Wet Lock Relay (3-way screwed Phoenix connector, supplied)

  • Ground

  • Normally Closed (NC)

  • Normally Open (NO)

    Note: 1.2A max @ 12V DC
    ​

• Door Monitor, REX and Reader (8-way screwed Phoenix connector, supplied)

  1. Monitor: Ground

  2. Monitor: V+ (12VDC tolerant, Internal Pullup, Current Limited, Level shifted, Active Low)

  3. REX: Ground

  4. REX: V+ (12VDC tolerant, Internal Pullup, Current Limited, Level shifted, Active Low)

  5. Reader: Ground

  6. Reader: Data 0

  7. Reader: Data 1

  8. Reader: 12VDC+

• 12V DC input (2-way screwed Phoenix connector, supplied) – advanced installations only

  • 12VDC+

  • Ground
    ​

• Dry Lock Relay (3-way screwed Phoenix connector, not supplied) – advanced installations only

  • Normally Closed (NC)

  • Common

  • Normally Open (NO)

    Note: 2A max @ 30V DC

• External Relay Board(s) (10-way IDC connector, not supplied) – advanced installations only

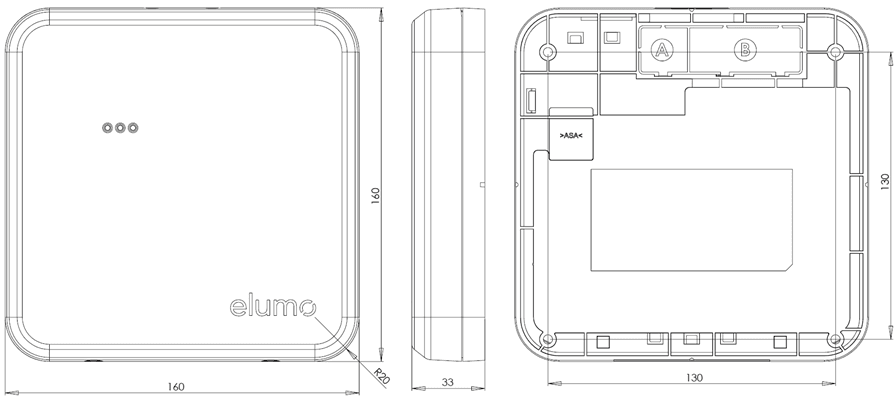

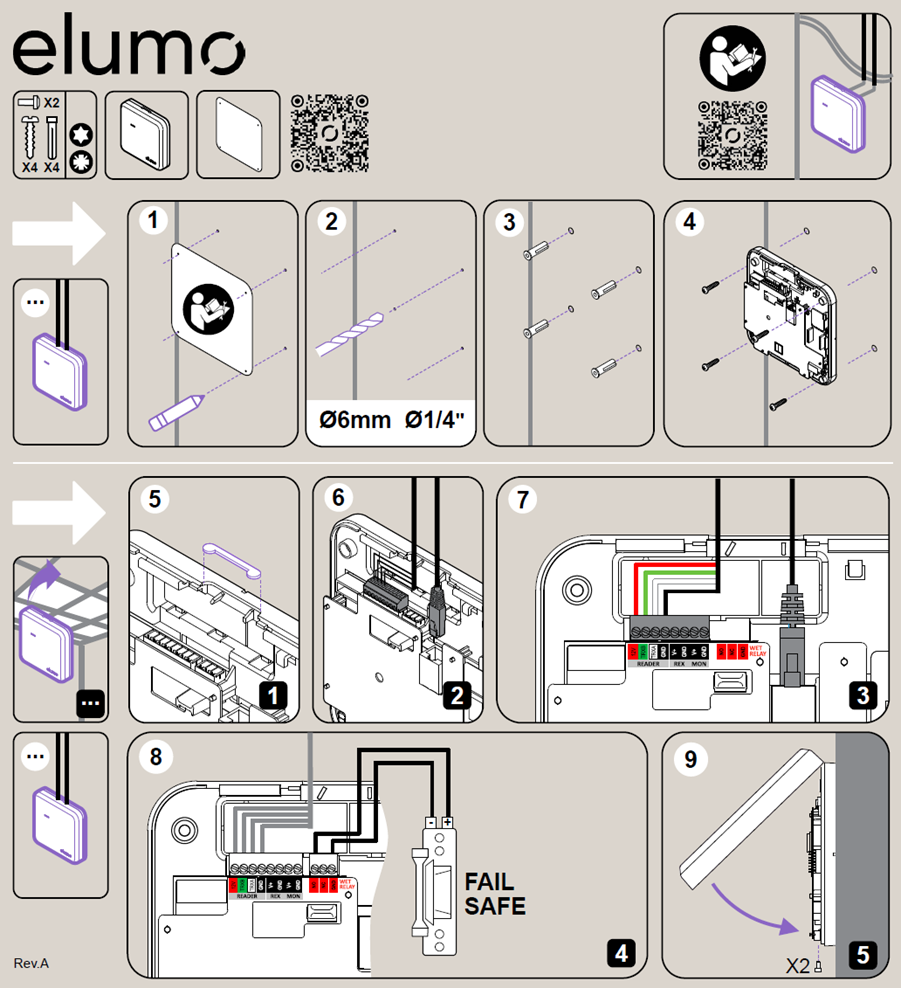

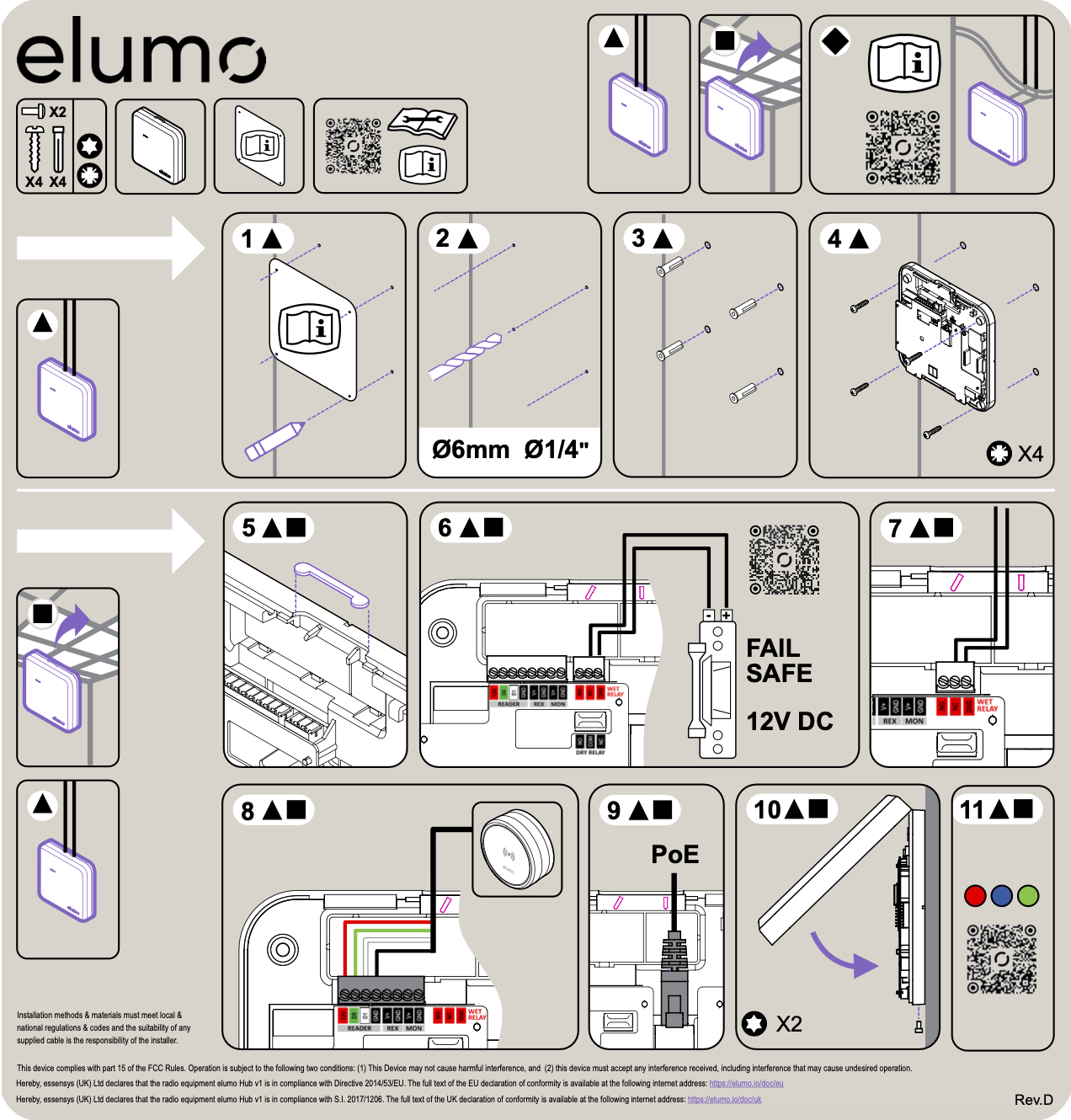

Quick Start Guide
